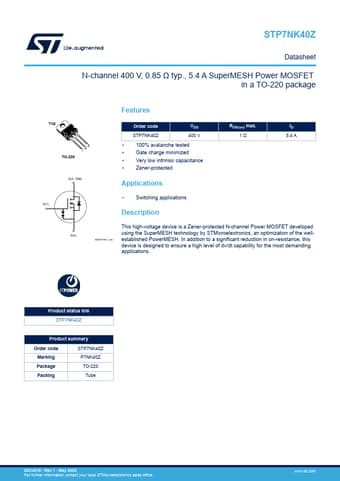

STP7NK40Z Datasheet, Mosfet, STMicroelectronics

STP7NK40Z Features

• Mosfet TAB TO-220 1 23 D(2, TAB) Order code VDS STP7NK40Z 400 V
• 100% avalanche tested
• Gate charge minimized
• Very low intrinsic capacitance
• Zene

PDF File Details

Part number:

STP7NK40Z

Manufacturer:

STMicroelectronics ↗

File Size:

457.35kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This high-voltage device is a Zener-protected N-channel Power MOSFET developed S(3) using the SuperMESH technology by STMicroelect

STP7NK40Z Application

• Applications RDS(on) max. 1Ω ID 5.4 A
• Switching applications G(1) Description This high-voltage device is a Zener-protected N-channel
