STP7NK80ZFP

N-CHANNEL MOSFET

ST Microelectronics

STP7NK80ZFP Features

* Type VDSS (@Tjmax) STP7NK80Z STP7NK80ZFP STB7NK80Z STB7NK80Z-1 800V 800V 800V 800V RDS(on) < 1.8Ω < 1.8Ω < 1.8Ω < 1.8Ω ID 5.2A 5.2A 5.2A 5.2A

* Extremely high dv/dt capability

* 100% avalanche tested

* Gate charge minimized

* Very low intrinsic capacitances

* Very good man

STP7NK80ZFP General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complement.

STP7NK80ZFP Datasheet (609.55 KB)

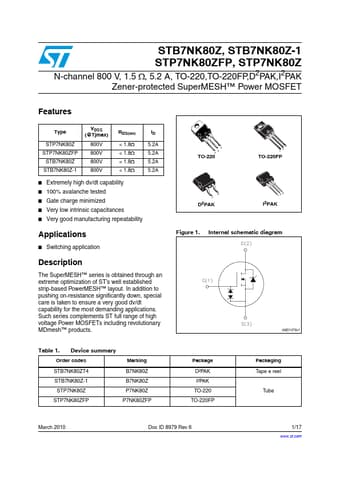

STP7NK80ZFP Datasheet Preview — Preview of STP7NK80ZFP PDF

Datasheet Details

Part number:

STP7NK80ZFP

Manufacturer:

STMicroelectronics ↗

File Size:

609.55 KB

Description:

N-channel mosfet.
STB7NK80Z, STB7NK80Z-1 STP7NK80ZFP, STP7NK80Z N-channel 800 V, 1.5 Ω, 5.2 A, TO-220,TO-220FP,D2PAK,I2PAK Zener-protected SuperMESH™ Power MOSFET Feat.
