Description

STPS10L40C Low drop power Schottky rectifier Datasheet - production data A1 K A2 K A2 K A1 TO-220AB KK A2 A1 D2PAK A2 A1 .
Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

📥 Download Datasheet

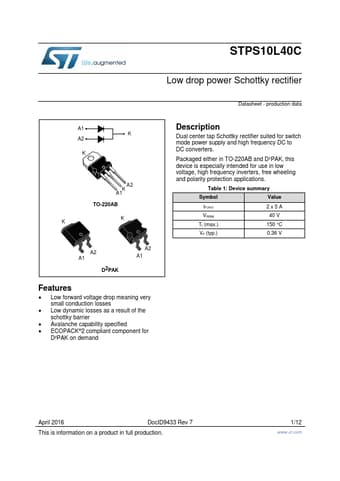

STPS10L40C Datasheet Preview — Preview of STPS10L40C PDF

Datasheet Specifications

Part number: STPS10L40C
Manufacturer: STMicroelectronics ↗
File Size: 441.41 KB
Datasheet: STPS10L40C-STMicroelectronics.pdf
Description: Low drop power Schottky rectifier

Features

* Low forward voltage drop meaning very small conduction losses
* Low dynamic losses as a result of the schottky barrier
* Avalanche capability specified

Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max. ) VF (typ. ) 2x5A 40 V 150 °C 0.36 V April 2016 DocID9433 Rev 7 This is information on a product in full production. 1/12 www. st. com Characteristics STPS10L40C 1 Characteristics Table 2: Absolute ratings (limiting values, per diod
