STPS10L25G, STPS10L25 Datasheet - STMicroelectronics

STPS10L25G Low drop power Schottky rectifier

Single Schottky rectifier suited to switched mode power supplies and high frequency DC to DC converters. This device is especially intended for use as a rectifier at the secondary of 3.3 V SMPS units. Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ.) Tj (max.) 10 A 25 V 0.30 V 150 °C .

STPS10L25-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: STPS10L25G, STPS10L25. Please refer to the document for exact specifications by model.

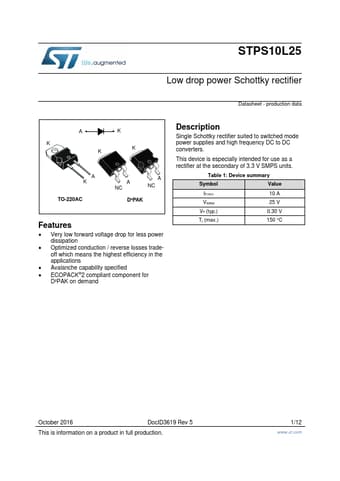

STPS10L25G Datasheet Preview Page 2 STPS10L25G Datasheet Preview Page 3

Datasheet Details

Part number:

STPS10L25G, STPS10L25

Manufacturer:

STMicroelectronics ↗

File Size:

366.08 KB

Description:

Low drop power schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: STPS10L25G, STPS10L25.
Please refer to the document for exact specifications by model.
