STPS10L60 Power Schottky Rectifier

STPS10L60 Description

STPS10L60 Datasheet 60 V power Schottky rectifier AK K TO-220AC A K .
This Schottky rectifier is designed for switched mode power supplies (SMPS) and high frequency DC to DC converters.

STPS10L60 Features

* Low forward voltage drop
* Negligible switching losses
* Low thermal resistance
* Avalanche capability specified

STPS10L60 Applications

* Switching diode
* SMPS
* DC/DC converter

📥 Download Datasheet

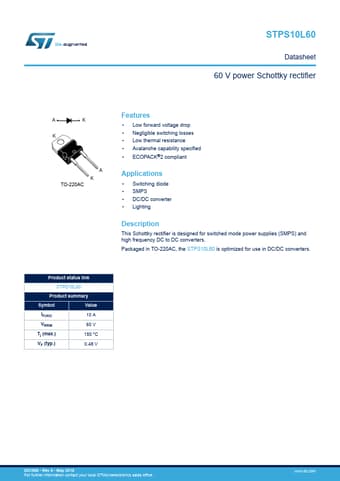

Preview of STPS10L60 PDF
datasheet Preview Page 2 datasheet Preview Page 3
