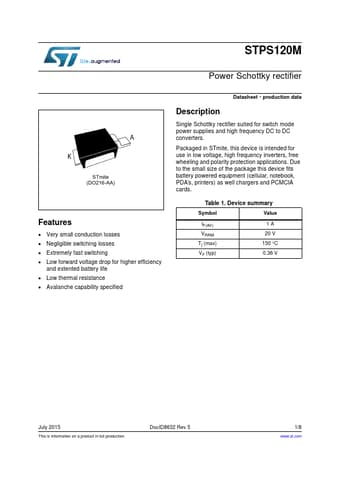

STPS120M Power Schottky rectifier

STPS120M Description

STPS120M Power Schottky rectifier " , 67PLWH '2$$ .
Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS120M Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop for higher efficiency and extented battery life
* Low thermal resistance
* Avalanche capability specified Datasheet - production data D

STPS120M Applications

* Due to the small size of the package this device fits battery powered equipment (cellular, notebook, PDA’s, printers) as well chargers and PCMCIA cards. Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 1A 20 V 150 °C 0.36 V July 2015 This is information on a product in full
