STPS120MF Power Schottky rectifier

STPS120MF Description

STPS120MF Power Schottky rectifier in flat package $ .67PLWHIODW '2$$ .
Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS120MF Features

* Very low profile package: 0.85 mm
* Backward compatible with standard STmite footprint
* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low forward voltage drop for higher efficiency and extended battery life

STPS120MF Applications

* Due to the very small size of the package this device fits battery powered equipment (cellular, notebook, PDA’s, printers) as well as chargers and PCMCIA cards. Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 1A 20 V 150 °C 0.36 V July 2015 This is information on a product

📥 Download Datasheet

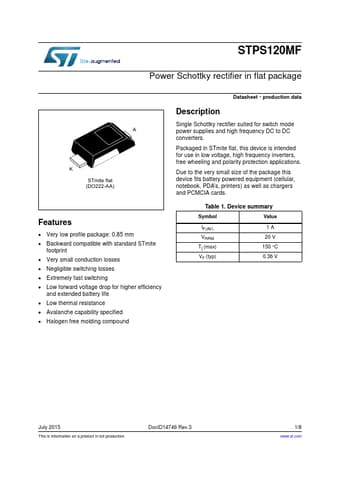

Preview of STPS120MF PDF
datasheet Preview Page 2 datasheet Preview Page 3
