STPS16H100CG

High voltage power Schottky rectifier

STPS16H100CG Features

* Negligible switching losses

* High junction temperature capability

* Low leakage current

* Good trade off between leakage current and forward voltage drop

* Avalanche capability specified

* ECOPACK®2 compliant component for D²PAK on demand Description Dual center tap Schot

STPS16H100CG General Description

Dual center tap Schottky rectifier designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-DC converters. Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 2x 8 A 100 V 175 °C 0.59 V April 2015 DocID8734 Rev 3 This is information on .

STPS16H100CG Datasheet (398.48 KB)

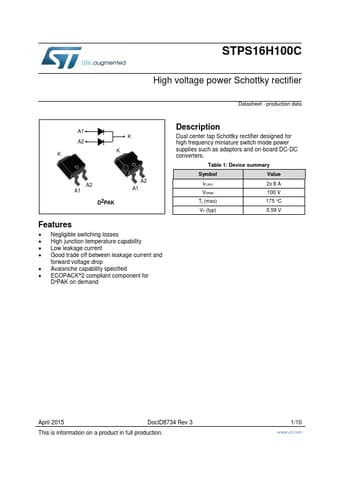

Preview of STPS16H100CG PDF

Datasheet Details

Part number:

STPS16H100CG

Manufacturer:

STMicroelectronics ↗

File Size:

398.48 KB

Description:

High voltage power schottky rectifier.
