STPS16H100CT

HIGH VOLTAGE POWER SCHOTTKY RECTIFIER

STPS16H100CT Features

* s 2x8A 100 V 175 °C 0.64 V A2 K K A2 s s s s NEGLIGIBLE SWITCHING LOSSES HIGH JUNCTION TEMPERATURE CAPABILITY LOW LEAKAGE CURRENT GOOD TRADE OFF BETWEEN LEAKAGE CURRENT AND FORWARD VOLTAGE DROP AVALANCHE CAPABILITY SPECIFIED K A1 A2 A1 TO-220AB STPS16H100CT D2PAK STPS16H100CG DESCRIPT

STPS16H100CT General Description

Dual center tap Schottky rectifier designed for high frequency miniature Switch Mode Power Supplies such as adaptators and on board DC/DC converters. A2 K A1 K A1 A2 TO-220FPAB STPS16H100CFP I2PAK STPS16H100CR ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM IF(RMS) IF(AV) RMS forward.

STPS16H100CT Datasheet (97.77 KB)

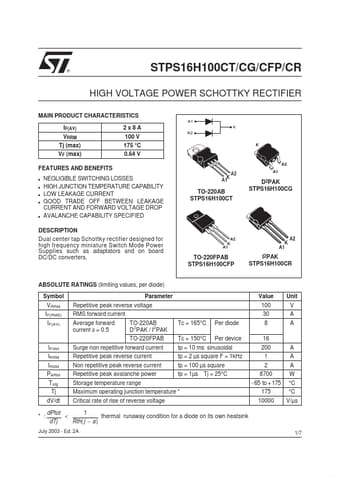

Preview of STPS16H100CT PDF

Datasheet Details

Part number:

STPS16H100CT

Manufacturer:

STMicroelectronics ↗

File Size:

97.77 KB

Description:

High voltage power schottky rectifier.
