STPS2200 Power Schottky diode

STPS2200 Description

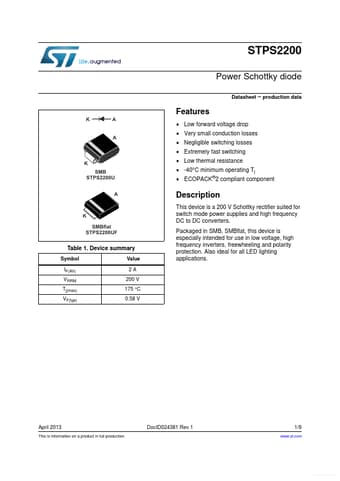

STPS2200 Power Schottky diode Datasheet  production data .
This device is a 200 V Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS2200 Features

* K A A
* Low forward voltage drop
* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* -40°C minimum operating Tj

STPS2200 Applications

* K SMBflat STPS2200UF Table 1. Device summary Symbol IF(AV) VRRM Tj(max) VF(typ) Value 2A 200 V 175 °C 0.58 V April 2013 This is information on a product in full production. DocID024381 Rev 1 1/9 www. st. com 9 Free Datasheet http://www. datasheet4u. com/ Characteristics STPS2200 1 Characteris
