STPS745 Power Schottky rectifier

STPS745 Description

STPS745 Power Schottky rectifier Datasheet - production data A K K K A TO-220AC K A NC A NC D2PAK A TO-220FPAC K .
Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.

STPS745 Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Insulated package: TO-220FPAC  Insulating voltage = 2000 VRMS sine
* Avalanche capability specified

STPS745 Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 7.5 A 45 V 175 °C 0.5 V May 2015 DocID3516 Rev 8 This is information on a product in full production. 1/14 www. st. com Characteristics STPS745 1 Characteristics Table 2: Absolute ratings (limiting values, at 25 °C, unle

📥 Download Datasheet

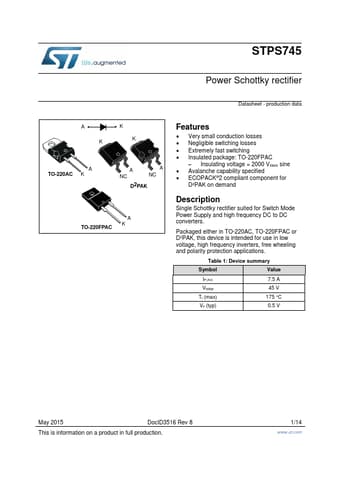

Preview of STPS745 PDF
datasheet Preview Page 2 datasheet Preview Page 3
