STSPIN220 Datasheet, Driver, STMicroelectronics

STSPIN220 Features

  • Driver
  • Operating voltage: from 1.8 to 10 V
  • Maximum output current: 1.3 Arms
  • RDS(ON) HS + LS = 0.4 Ω typ.
  • Microstepping up to 1/256th of a step

PDF File Details

Part number:

STSPIN220

Manufacturer:

STMicroelectronics ↗

File Size:

896.98kb

Download:

📄 Datasheet

Description:

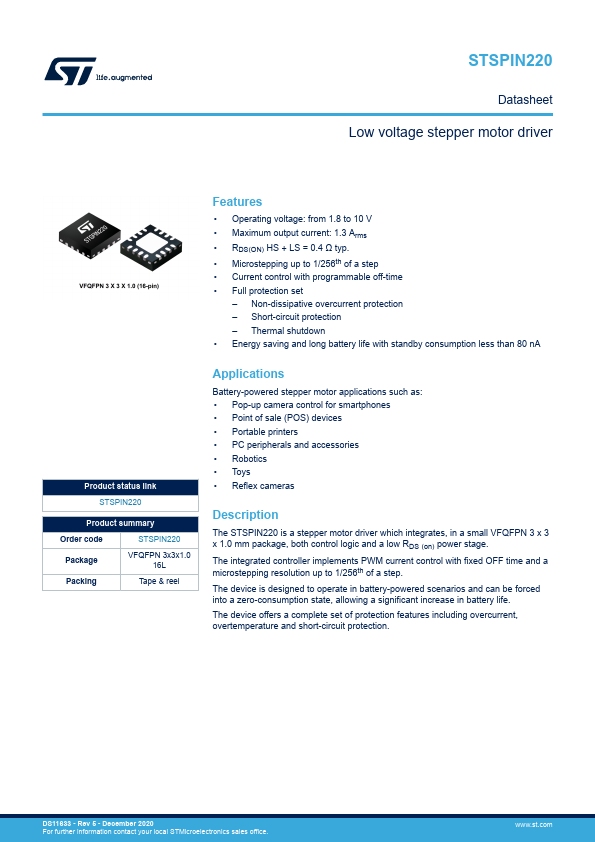

Low voltage stepper motor driver. The STSPIN220 is a stepper motor driver which integrates, in a small VFQFPN 3 x 3 x 1.0 mm package, both control logic and a low RDS

Datasheet Preview: STSPIN220 📥 Download PDF (896.98kb)
Page 2 of STSPIN220 Page 3 of STSPIN220

STSPIN220 Application

  • Applications Battery-powered stepper motor applications such as:
  • Pop-up camera control for smartphones
  • Point of sale (POS) devic
