STSPIN240 Datasheet, Driver, STMicroelectronics

STSPIN240 Features

  • Driver
  • Operating voltage from 1.8 to 10 V
  • Maximum output current 1.3 Arms
  • RDS(ON) HS + LS = 0.4  typ.
  • Current control with programmable off-time
  • <

PDF File Details

Part number:

STSPIN240

Manufacturer:

STMicroelectronics ↗

File Size:

628.84kb

Download:

📄 Datasheet

Description:

Low voltage dual brush dc motor driver. The STSPIN240 is a dual brush DC motor driver integrating a low RDS(ON) power stage in a small QFN 3 x 3 mm package. Both the full-br

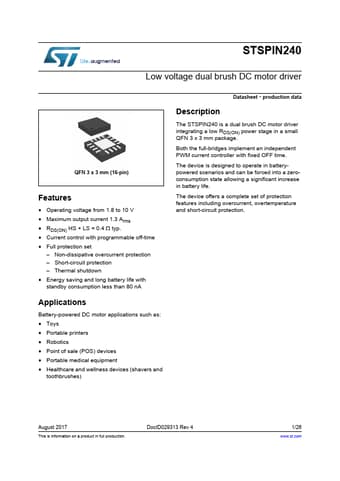

Datasheet Preview: STSPIN240 📥 Download PDF (628.84kb)
Page 2 of STSPIN240 Page 3 of STSPIN240

STSPIN240 Application

  • Applications Battery-powered DC motor applications such as:
  • Toys
  • Portable printers
  • Robotics
  • Point of sale (P
