STS05DTP03

Dual NPN-PNP complementary bipolar transistor

STS05DTP03 Features

* High gain Low VCE(sat) Simplified circuit design Reduced component count 4 1 5 8 Applications

* Push-pull or Totem-Pole configuration MOSFET and IGBT gate driving Motor, relay and solenoid driving Figure 1. SO-8 Internal schematic diagram Description The

STS05DTP03 General Description

The STS05DTP03 is a hybrid dual NPN-PNP complementary power bipolar transistor manufactured by using the latest low voltage planar technology. The STS05DTP03 is housed in dual island SO-8 package with separated terminals for higher assembly flexibility, specifically recommended to be used in Push-Pu.

STS05DTP03 Datasheet (263.32 KB)

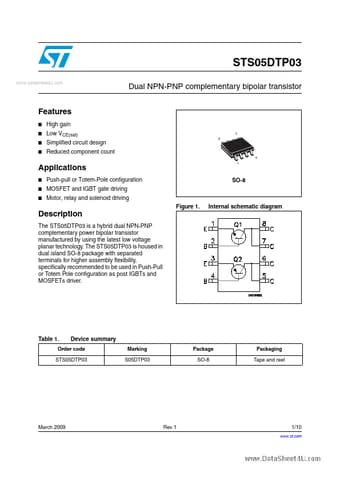

Preview of STS05DTP03 PDF

Datasheet Details

Part number:

STS05DTP03

Manufacturer:

STMicroelectronics ↗

File Size:

263.32 KB

Description:

Dual npn-pnp complementary bipolar transistor.
