STS11NF30L - N-CHANNEL PowerMESH MOSFET

STS11NF30L Description

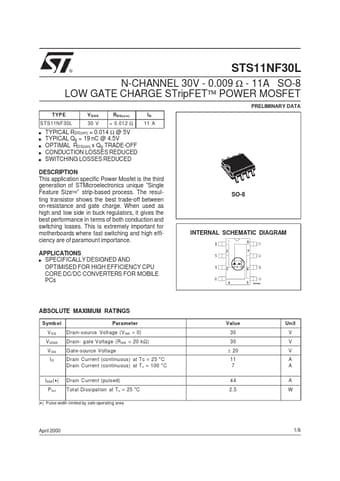

® STS11NF30L N-CHANNEL 30V - 0.009 Ω - 11A SO-8 LOW GATE CHARGE STripFET™ POWER MOSFET PRELIMINARY DATA TYPE STS11NF30L s s s s s V DSS 30 V R DS(.
This application specific Power Mosfet is the third generation of STMicroelectronics unique ”Single Feature Size™” strip-based process.

STS11NF30L Applications

* s SPECIFICALLY DESIGNED AND OPTIMISED FOR HIGH EFFICIENCY CPU CORE DC/DC CONVERTERS FOR MOBILE PCs SO-8 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol V DS V DGR V GS ID Parameter Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω) G ate-source Voltage Drain Current (
