STS100

Multifunction Telecommunications Switch

STS100 Features

* Miniature 16pin SOIC package

* Function integration (2 relays+1 optocoupler in one package)

* High Blocking Voltage (400V, relay portion)

* Low input control current (2.5mA TYP, relay portion)

* Low On-Resistance (30 ohms MAX, relay portion)

* High L

STS100 General Description

The STS100 combines two 1 Form A solid state relays and one optocoupler in a 16-pin SOIC package. Each relay is composed of an Infrared LED optically coupled to a Photo Diode Array that drives two back-to-back DMOS transistors. The optocoupler consists of backto-back Infrared LEDs optically coupled .

STS100 Datasheet (576.24 KB)

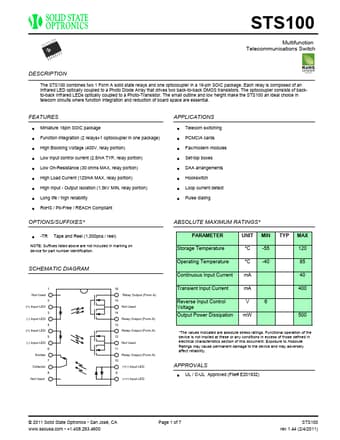

Preview of STS100 PDF

Datasheet Details

Part number:

STS100

Manufacturer:

Solid State Optronic

File Size:

576.24 KB

Description:

Multifunction telecommunications switch.
