STS710

Multifunction Telecommunications Switch

Solid State Optronic

STS710 Features

* APPLICATIONS

* Miniature 16pin SOIC package

* Function integration, including Zener Diode protection

* High Blocking Voltage (400V, relay portion)

* Low input control current (2.5mA TYP, relay portion)

* Low On-Resistance (30 ohms MAX, relay portion)

STS710 General Description

The STS710 is a multi-function telecommunications switch. It combines a 1 Form A solid state relay, phototransistor, zener diode, darlington transistor and a bridge rectifier in a 16-pin SOIC package.The solid state relay is comprised of an infrared LED optically coupled to a Photo Diode Array that.

STS710 Datasheet (440.80 KB)

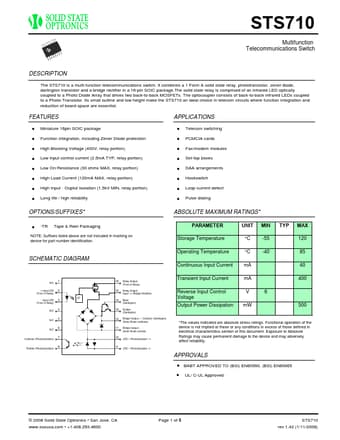

STS710 Datasheet Preview — Preview of STS710 PDF

Datasheet Details

Part number:

STS710

Manufacturer:

Solid State Optronic

File Size:

440.80 KB

Description:

Multifunction telecommunications switch.
