STS700

Multifunction Telecommunications Switch

Solid State Optronic

STS700 Features

* www.DataSheet4U.com

* Low input control current APPLICATIONS

* Telecom switching PCMCIA cards Fax/modem modules Set-top boxes DAA arrangements Hookswitch Loop current detect Pulse dialing

STS700 General Description

The STS700 is a multi-function telecommunications relay. It combines a 1 Form A solid state relay, phototransistor, Darlington transistor and a bridge rectifier in a 16-pin SOIC package. Its small outline and low height make it ideal for use in PCMCIA applications where multifunction devices help re.

STS700 Datasheet (187.01 KB)

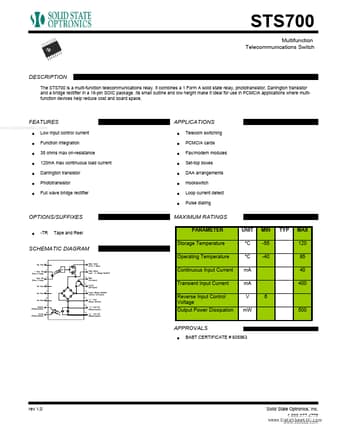

STS700 Datasheet Preview — Preview of STS700 PDF

Datasheet Details

Part number:

STS700

Manufacturer:

Solid State Optronic

File Size:

187.01 KB

Description:

Multifunction telecommunications switch.
