STS7P4LLF6 - P-Channel Power MOSFET

STS7P4LLF6 Description

STS7P4LLF6 Datasheet P-channel 40 V, 17.5 mΩ typ., 7 A, STripFET F6 Power MOSFET in an SO-8 package 5 8 4 1 SO-8 D(5, 6, 7, 8) G(4) S(1, 2, 3) AM0.
This device is a P-channel Power MOSFET developed using the STripFET F6 technology, with a new trench gate structure.

STS7P4LLF6 Features

* Order code VDS STS7P4LLF6 40 V
* Very low on-resistance
* Very low gate charge
* High avalanche ruggedness

📥 Download Datasheet

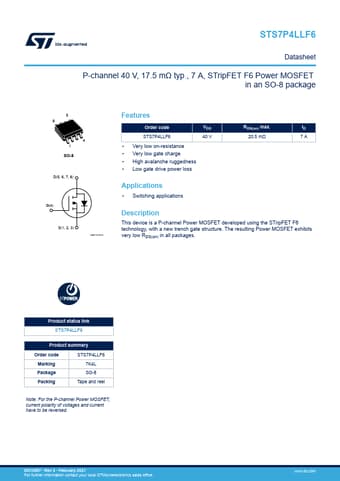

Preview of STS7P4LLF6 PDF
datasheet Preview Page 2 datasheet Preview Page 3
