STS10PF30L Datasheet, Mosfet, STMicroelectronics

STS10PF30L Features

  • Mosfet TYPE STS10PF30L
  • STS10PF30L Figure 1:Package RDS(on) <0.014 Ω ID 10 A VDSS 30V
  • TYPICAL RDS(on) = 0.012 Ω STANDARDOUTLINEFOR EASY AUTOMATED SURFACE MOUN

PDF File Details

Part number:

STS10PF30L

Manufacturer:

STMicroelectronics ↗

File Size:

235.78kb

Download:

📄 Datasheet

Description:

P-channel power mosfet. This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting tra

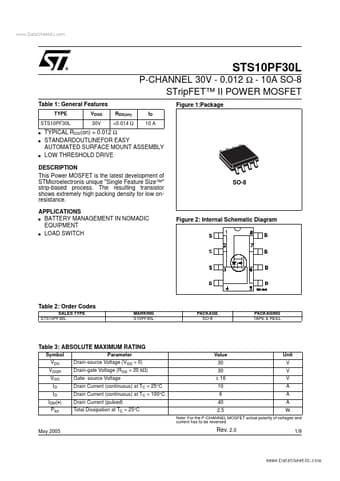

Datasheet Preview: STS10PF30L 📥 Download PDF (235.78kb)
Page 2 of STS10PF30L Page 3 of STS10PF30L

STS10PF30L Application

  • Applications
  • BATTERY MANAGEMENT IN NOMADIC EQUIPMENT
  • LOAD SWITCH SO-8 Figure 2: Internal Schematic Diagram Table 2: Order Cod
