STS1NK60Z - N-CHANNEL Power MOSFET

STS1NK60Z Description

STS1NK60Z N-CHANNEL 600V - 13Ω - 0.25A - SO-8 Zener-Protected SuperMESH™ Power MOSFET TYPE STS1NK60Z VDSS 600 V RDS(on) < 15 Ω ID 0.25 A Pw 2W TYPICA.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STS1NK60Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STS1NK60Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS AC ADAPTORS AND BATTERY CHARGERS SWITH MODE POWER SUPPLIES (SMPS) ORDERING INFORMATION SALES TYPE STS1NK60Z MARKING S1NK60Z PACKAGE SO-8 PACKAGING TAPE

📥 Download Datasheet

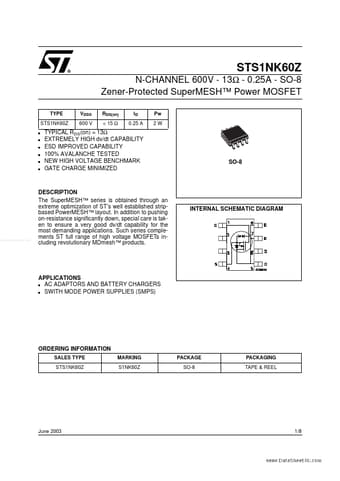

Preview of STS1NK60Z PDF
