STS12N3LLH5 Datasheet - STMicroelectronics

STS12N3LLH5-STMicroelectronics.pdf

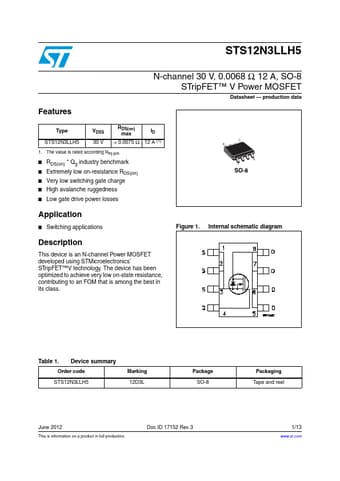

Preview of STS12N3LLH5 PDF
STS12N3LLH5 Datasheet Preview Page 2 STS12N3LLH5 Datasheet Preview Page 3

Datasheet Details

Part number:

STS12N3LLH5

Manufacturer:

STMicroelectronics ↗

File Size:

198.84 KB

Description:

N-channel mosfet.

STS12N3LLH5, N-channel MOSFET

This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™V technology.

The device has been optimized to achieve very low on-state resistance, contributing to an FOM that is among the best in its class.

Table 1.

Device summary Order code STS12N3LLH5 Marking 12D3L Packa

STS12N3LLH5 Features

* N-channel 30 V, 0.0068 Ω, 12 A, SO-8 STripFET™ V Power MOSFET Datasheet

* production data Type STS12N3LLH5 VDSS 30 V RDS(on) max < 0.0075 Ω ID 12 A (1) 1. The value is rated according Rthj-pcb

* RDS(on)

* Qg industry benchmark

* Extremely low on-resistance RDS(on)

* Ver
