STS12NH3LL Datasheet, Mosfet, ST Microelectronics

STS12NH3LL Features

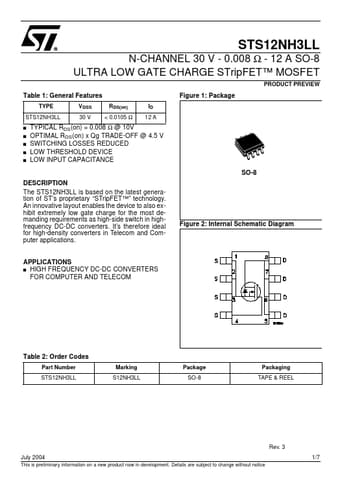

  • Mosfet TYPE STS12NH3LL s s s s s Figure 1: Package RDS(on) < 0.0105 Ω ID 12 A VDSS 30 V TYPICAL RDS(on) = 0.008 Ω @ 10V OPTIMAL RDS(on) x Qg TRADE-OFF @ 4.5 V SWITCHING LOSSES REDUCED LOW T

PDF File Details

Part number:

STS12NH3LL

Manufacturer:

STMicroelectronics ↗

File Size:

178.42kb

Download:

📄 Datasheet

Description:

N-channel powermesh mosfet. The STS12NH3LL is based on the latest generation of ST’s proprietary “STripFET™” technology. An innovative layout enables the device

Datasheet Preview: STS12NH3LL 📥 Download PDF (178.42kb)
Page 2 of STS12NH3LL Page 3 of STS12NH3LL

STS12NH3LL Application

  • Applications Figure 2: Internal Schematic Diagram APPLICATIONS s HIGH FREQUENCY DC-DC CONVERTERS FOR COMPUTER AND TELECOM Table 2: Order Codes P
