STS15N4LLF3 Datasheet, Mosfet, ST Microelectronics

STS15N4LLF3 Features

  • Mosfet Type STS15N4LLF3
  • VDSS 40V RDS(on) <0.005Ω ID 15A Optimal RDS(on)x Qg trade-off @ 4.5V Conduction losses reduced Switching losses reduced SO-8 Descript

PDF File Details

Part number:

STS15N4LLF3

Manufacturer:

STMicroelectronics ↗

File Size:

329.79kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel enhancement mode Power MOSFET is the latest refinement of STMicroelectronic unique “Single Feature Size™“ strip-based

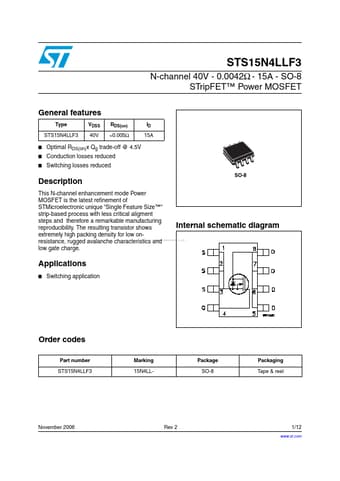

Datasheet Preview: STS15N4LLF3 📥 Download PDF (329.79kb)
Page 2 of STS15N4LLF3 Page 3 of STS15N4LLF3

STS15N4LLF3 Application

  • Applications
  • Switching application Order codes Part number STS15N4LLF3 Marking 15N4LLPackage SO-8 Packaging Tape & reel November 2006
