STS15N4LLF5

SO-8 STripFET Power MOSFET

ST Microelectronics

STS15N4LLF5 Features

* Type STS15N4LLF5

* VDSS 40 V RDS(on) max. < 0.0076 Ω ID 15 A Optimal RDS(on)x Qg trade-off @ 4.5 V Conduction losses reduced Switching losses reduced SO-8 Applications

* Switching application Description This STripFET™V Power MOSFET technology is among the latest improveme

STS15N4LLF5 General Description

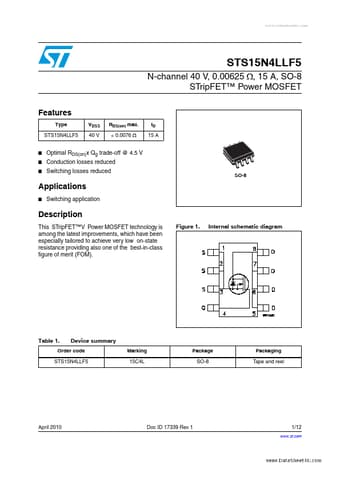

This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class figure of merit (FOM). Figure 1. Internal schematic diagram Table 1. Device summary Marking 15C4L Package SO.
