STSPIN32G4

High performance 3-phase motor controller

STSPIN32G4 Features

* Motor supply voltage from 5.5 V to 75 V

* Three-phase gate drivers:

* 1 A sink/source current capability

* VDS monitoring of the power stage MOSFETs

* Integrated bootstrap diodes

* I2C accessible configuration and status registers for best applicatio

STSPIN32G4 General Description

The STSPIN32G4 is an extremely integrated and flexible motor controller for driving 3-phase brushless motors, helping designers to choose the most suitable driving mode and reduce PCB area and overall Bill Of Materials. It embeds a triple half-bridge gate driver able to drive power MOSFETs with a cu.

STSPIN32G4 Datasheet (1.00 MB)

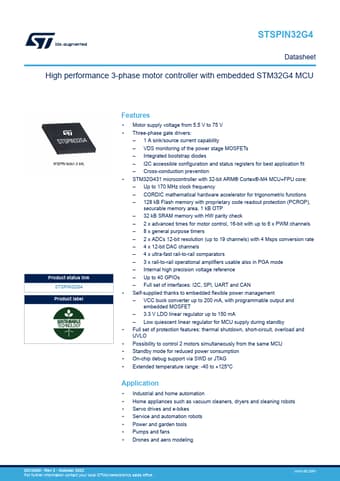

Preview of STSPIN32G4 PDF

Datasheet Details

Part number:

STSPIN32G4

Manufacturer:

STMicroelectronics ↗

File Size:

1.00 MB

Description:

High performance 3-phase motor controller.
