STSR2PM, STSR2P FORWARD SYNCHRONOUS RECTIFIERS SMART DRIVER

STSR2PM Description

STSR2P/ STSR2PM FORWARD SYNCHRONOUS RECTIFIERS SMART DRIVER s s s s s s SUPPLY VOLTAGE RANGE: 4.5V TO 5.5V TYPICAL PEAK OUTPUT CURRENT: SOURCE -2A,.
STSR2P Smart Driver IC provides two complementary high current outputs to drive Power Mosfets.

STSR2PM Features

* >
* -R3 1.5k Ω This value is below the maximum allowable current flowing into the CK pin (10mA). If the 10mA value is exceeded an external diode connected to VCC must be added (D3). R1 and R 2 values set the anticipation time for OUTGATE2. For R1=∞ and R2=0, tANT2=75ns; for R1=R 2=10kΩ, tANT2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STSR2PM, STSR2P. Please refer to the document for exact specifications by model.

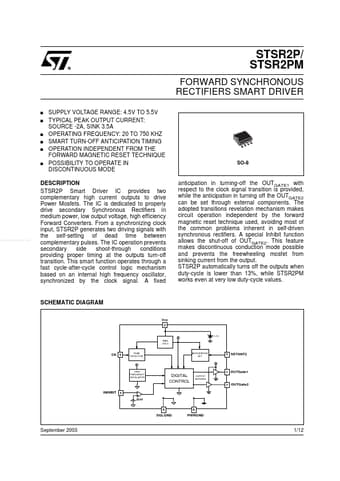

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STSR2PM, STSR2P
Manufacturer
STMicroelectronics ↗
File Size
219.21 KB
Datasheet
STSR2P_STMicroelectronics.pdf
Description
FORWARD SYNCHRONOUS RECTIFIERS SMART DRIVER
Note
This datasheet PDF includes multiple part numbers: STSR2PM, STSR2P.
Please refer to the document for exact specifications by model.
