STTH15RQ06

Turbo 2 ultrafast high voltage rectifier

STTH15RQ06 Features

* High junction temperature capability

* Ultrafast with soft recovery behavior

* Low reverse current

* Low thermal resistance

* Reduce switching and conduction losses

* D²PAK HV creepage distance (anode to cathode) = 5.38 mm min. (with top coating)

STTH15RQ06 General Description

The STTH15RQ06 has been developed to be used in application requiring a highvoltage secondary rectification for LLC Full Bridge topology. It is also suited for use in switching power supplies, industrial applications, as rectification, freewheeling and clamping diode. DS12162 - Rev 2 - November 201.

STTH15RQ06 Datasheet (541.85 KB)

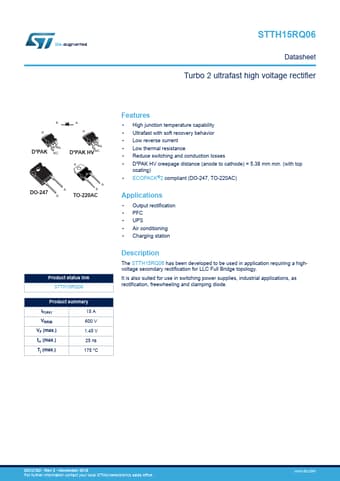

Preview of STTH15RQ06 PDF

Datasheet Details

Part number:

STTH15RQ06

Manufacturer:

STMicroelectronics ↗

File Size:

541.85 KB

Description:

Turbo 2 ultrafast high voltage rectifier.
STTH15RQ06 Datasheet Turbo 2 ultrafast high voltage rectifier K K A K KA D²PAK NC AA D²PAK HV NC K DO-247 A K A K TO-220AC Product status lin.
