STTH15L06G Datasheet, Rectifier, ST Microelectronics

STTH15L06G Features

  • Rectifier
  • Up to 20 A 600 V 175°C 0.95 V 55 ns K A K A TO-220AC STTH15L06D TO-220FPAC STTH15L06FP Ultrafast switching Low reverse current Low thermal re

PDF File Details

Part number:

STTH15L06G

Manufacturer:

STMicroelectronics ↗

File Size:

98.19kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH15L06, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, and industrial app

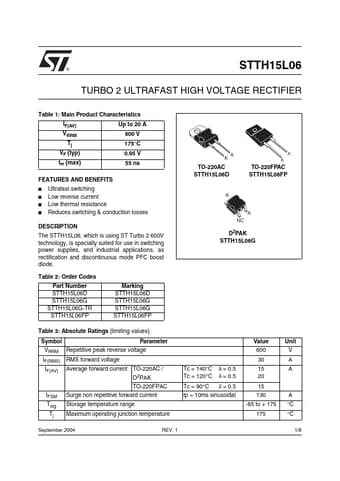

Datasheet Preview: STTH15L06G 📥 Download PDF (98.19kb)
Page 2 of STTH15L06G Page 3 of STTH15L06G

STTH15L06G Application

  • Applications as rectification and discontinuous mode PFC boost diode. Table 2: Order Codes Part Number STTH15L06D STTH15L06G STTH15L06G-TR STTH15L0
