STU10P6F6

P-CHANNEL POWER MOSFET

STMicroelectronics

STU10P6F6 Features

* Order codes STD10P6F6 STF10P6F6 STP10P6F6 STU10P6F6 VDS -60 V RDS(on) max 0.16 Ω

* Very low on-resistance

* Very low gate charge

* High avalanche ruggedness

* Low gate drive power loss ID -10 A Applications

* Switching applications Description These dev

STU10P6F6 General Description

These devices are P-channel Power MOSFETs developed using the STripFET™ F6 technology, with a new trench gate structure. The resulting Power MOSFETs exhibit very low RDS(on) in all packages. Order codes STD10P6F6 STF10P6F6 STP10P6F6 STU10P6F6 AM11258v1 Table 1. Device summary Marking Package D.

STU10P6F6 Datasheet (1.13 MB)

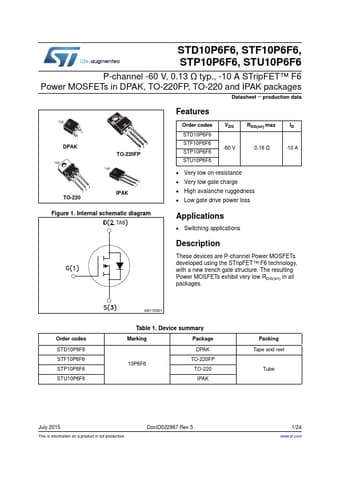

STU10P6F6 Datasheet Preview — Preview of STU10P6F6 PDF

Datasheet Details

Part number:

STU10P6F6

Manufacturer:

STMicroelectronics ↗

File Size:

1.13 MB

Description:

P-channel power mosfet.
STD10P6F6, STF10P6F6, STP10P6F6, STU10P6F6 P-channel -60 V, 0.13 Ω typ., -10 A STripFET™ F6 Power MOSFETs in DPAK, TO-220FP, TO-220 and IPAK packages .
