STU2N62K3

N-channel Power MOSFET

STMicroelectronics

STU2N62K3 Features

* Order code VDS RDS(on)max. STD2N62K3 STF2N62K3 620 V 3.6 Ω STU2N62K3

* 100% avalanche tested

* Extremely high dv/dt capability

* Very low intrinsic capacitance

* Improved diode reverse recovery characteristics

* Zener-protected ID 2.2 A Package DPAK

STU2N62K3 General Description

These MDmesh™ K3 Power MOSFETs are the result of improvements applied to STMicroelectronics’ MDmesh™ technology, combined with a new optimized vertical structure. These devices boast an extremely low on-resistance, superior dynamic performance and high avalanche capability, rendering them suitable f.

STU2N62K3 Datasheet (671.25 KB)

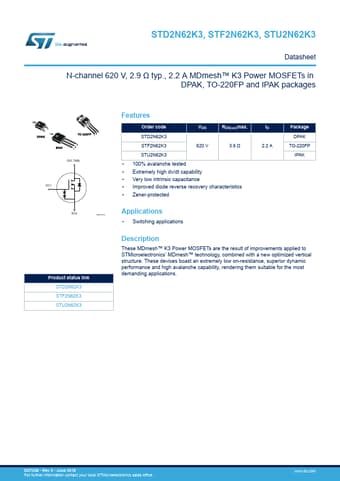

STU2N62K3 Datasheet Preview — Preview of STU2N62K3 PDF

Datasheet Details

Part number:

STU2N62K3

Manufacturer:

STMicroelectronics ↗

File Size:

671.25 KB

Description:

N-channel power mosfet.
STD2N62K3, STF2N62K3, STU2N62K3 Datasheet N-channel 620 V, 2.9 Ω typ., 2.2 A MDmesh™ K3 Power MOSFETs in DPAK, TO-220FP and IPAK packages D(2, TAB) G.
