STU2N95K5 Datasheet - STMicroelectronics

STU2N95K5 N-channel Power MOSFET

These N-channel Zener-protected Power MOSFETs are designed using ST’s revolutionary avalanche-rugged very high voltage SuperMESH™ 5 technology, based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance, and ultra-low gate charge for applications which.

STU2N95K5 Features

* Order codes VDS RDS(on) max ID PTOT STD2N95K5 STF2N95K5 950 V STP2N95K5 STU2N95K5 5Ω 45 W 20 W 2A 45 W

* TO-220 worldwide best RDS(on)

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected Applications

STU2N95K5 Datasheet (1.22 MB)

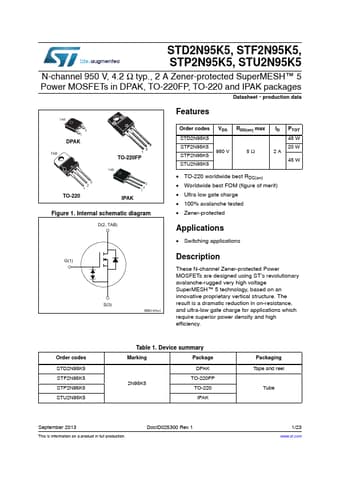

Preview of STU2N95K5 PDF

Datasheet Details

Part number:

STU2N95K5

Manufacturer:

STMicroelectronics ↗

File Size:

1.22 MB

Description:

N-channel power mosfet.
