STU7N60M2 Datasheet, Mosfet, STMicroelectronics

STU7N60M2 Features

• Mosfet Order codes VDS @ TJmax RDS(on) max. STD7N60M2 STP7N60M2 650 V 0.95 Ω STU7N60M2
• Extremely low gate charge
• Excellent output capacitance (COSS) profile
<

PDF File Details

Part number:

STU7N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

576.06kb

Download:

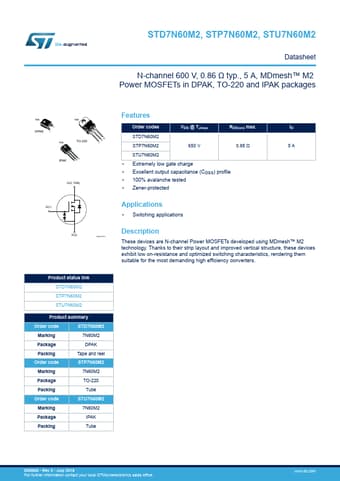

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical s

STU7N60M2 Application

• Applications
• Switching applications Description These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks t
