STU7N65M2 Datasheet, Mosfet, STMicroelectronics

STU7N65M2 Features

  • Mosfet Order code STP7N65M2 STU7N65M2 VDS 650 V 650 V RDS(on) max 1.15 Ω 1.15 Ω ID 5A 5A
  • Extremely low gate charge
  • Excellent output capacitance (Coss) profile

PDF File Details

Part number:

STU7N65M2

Manufacturer:

STMicroelectronics ↗

File Size:

689.10kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology. Thanks to the strip layout associated with an im

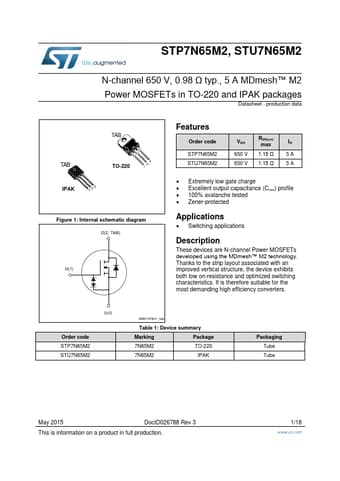

Datasheet Preview: STU7N65M2 📥 Download PDF (689.10kb)
Page 2 of STU7N65M2 Page 3 of STU7N65M2

STU7N65M2 Application

  • Applications
  • Switching applications Description These devices are N-channel Power MOSFETs developed using the MDmesh™ M2 technology. Thank
