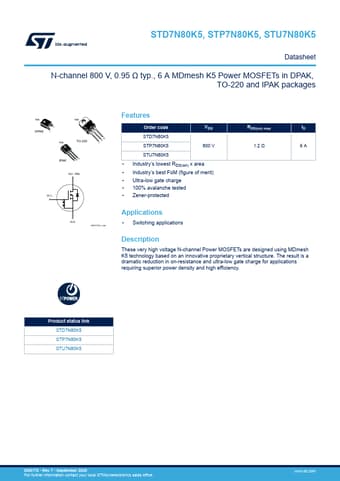

STU7N80K5 Datasheet, Mosfet, STMicroelectronics

STU7N80K5 Features

• Mosfet Order code VDS STD7N80K5 STP7N80K5 800 V STU7N80K5
• Industry’s lowest RDS(on) x area
• Industry’s best FoM (figure of merit)
• Ultra-low gate charge

PDF File Details

Part number:

STU7N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

502.25kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. These very high voltage N-channel Power MOSFETs are designed using MDmesh K5 technology based on an innovative proprietary vertical s

STU7N80K5 Application

• Applications
• Switching applications Description These very high voltage N-channel Power MOSFETs are designed using MDmesh K5 technology b
