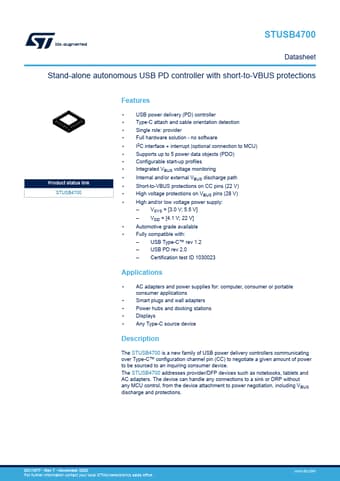

STUSB4700 Datasheet, Controller, STMicroelectronics

STUSB4700 Features

• Controller
• USB power delivery (PD) controller
• Type-C attach and cable orientation detection
• Single role: provider
• Full hardware solution - no software

PDF File Details

Part number:

STUSB4700

Manufacturer:

STMicroelectronics ↗

File Size:

1.04MB

Download:

📄 Datasheet

Description:

Autonomous usb pd controller. The STUSB4700 is a new family of USB power delivery controllers communicating over Type-C™ configuration channel pin (CC) to negotia

STUSB4700 Application

• Applications
• AC adapters and power supplies for: computer, consumer or portable consumer applications
• Smart plugs and wall adap
