STUSB4710 - Autonomous USB PD controller

Product Overview

STMicroelectronics

Datasheet Details

Part number	STUSB4710
Manufacturer	STMicroelectronics
File Size	1.10 MB
Description	Autonomous USB PD controller
Datasheet	STUSB4710 Datasheet

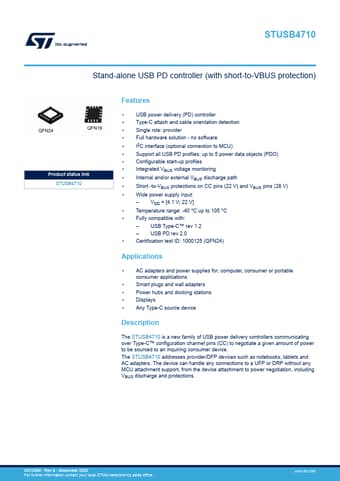

Additional preview pages of the STUSB4710 datasheet.

Product details

Description

The STUSB4710 is a new family of USB power delivery controllers communicating over Type-C™ configuration channel pins (CC) to negotiate a given amount of power to be sourced to an inquiring consumer device.

Features

USB power delivery (PD) controller.
Type-C attach and cable orientation detection.
Single role: provider.
Full hardware solution - no software.
I2C interface (optional connection to MCU).
Support all USB PD profiles: up to 5 power data objects (PDO).
Configurable start-up profiles.
Integrated VBUS voltage monitoring.
Internal and/or external VBUS discharge path.
Short -to-VBUS protections on C.
