STUSB4761 - Standalone USB PD controller

Product Overview

STMicroelectronics

📥 Download Datasheet

STUSB4761 Standalone USB PD controller by STMicroelectronics - Datasheet Preview — Datasheet preview – STUSB4761

Datasheet Details

Part number	STUSB4761
Manufacturer	STMicroelectronics
File Size	2.43 MB
Description	Standalone USB PD controller
Datasheet	STUSB4761 Datasheet

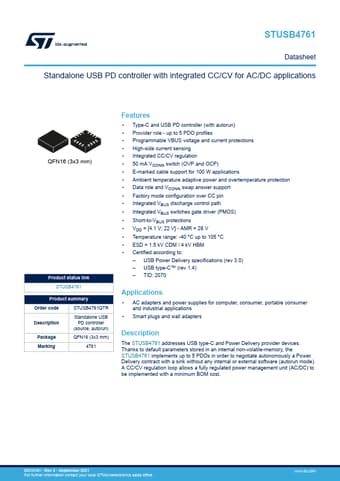

Additional preview pages of the STUSB4761 datasheet.

Product details

Description

Standalone USB PD controller (source, autorun) Package QFN16 (3x3 mm) Marking 4761

Features

Type-C and USB PD controller (with autorun).
Provider role - up to 5 PDO profiles.
Programmable VBUS voltage and current protections.
High-side current sensing.
Integrated CC/CV regulation.
50 mA VCONN switch (OVP and OCP).
E-marked cable support for 100 W.
