STV8238 - Digital Audio Decoder/Processor

Product Overview

STMicroelectronics

Datasheet Details

Part number	STV8238
Manufacturer	STMicroelectronics
File Size	1.49 MB
Description	Digital Audio Decoder/Processor
Datasheet	STV8238 Datasheet
Note	This datasheet PDF includes multiple part numbers: STV8238, STV8218. Please refer to the document for exact specifications by model.

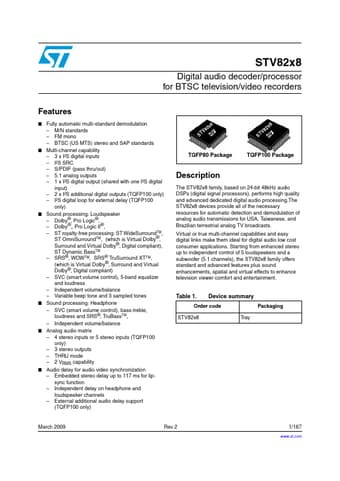

Additional preview pages of the STV8238 datasheet.

Product details

Description

The STV82x8 family, based on 24-bit 48kHz audio DSPs (digital signal processors), performs high quality and advanced dedicated digital audio processing.The STV82x8 devices provide all of the necessary resources for automatic detection and demodulation of analog audio transmissions for USA, Taiwanese, and Brazilian terrestrial analog TV broadcasts.

Features

Fully automatic multi-standard demodulation.
M/N standards.
FM mono.
BTSC (US MTS) stereo and SAP standards Multi-channel capability.
3 x I²S digital inputs.
I²S SRC.
S/PDIF (pass thru/out).
5.1 analog outputs.
1 x I²S digital output (shared with one I²S digital input).
2 x I²S additional digital outputs (TQFP100 only).
I²S digital loop for external delay (TQFP100 o.
