STW13N80K5 Datasheet - STMicroelectronics

N-channel Power MOSFET

STW13N80K5 Features

* Order codes VDS RDS(on) ID PTOT STB13N80K5 190 W STF13N80K5 800 V STP13N80K5 STW13N80K5 0.45 Ω 12 A 35 W 190 W

* Worldwide best FOM (figure of merit)

* Ultra low gate charge

* 100% avalanche tested

* Zener-protected Applications

* Switching applicat

STW13N80K5 General Description

These devices are N-channel Zener-protected Power MOSFETs realized in SuperMESH™ 5, a revolutionary avalanche-rugged very high voltage Power MOSFET technology based on an innovative proprietary vertical structure. The result is a drastic reduction in on-resistance and ultra low gate charge for appli.

STW13N80K5 Datasheet (945.14 KB)

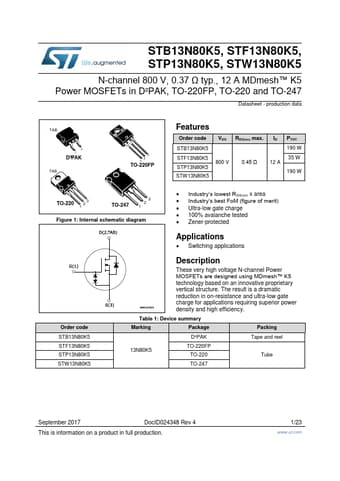

STW13N80K5 Datasheet Preview — Preview of STW13N80K5 PDF

Datasheet Details

Part number:

STW13N80K5

Manufacturer:

STMicroelectronics ↗

File Size:

945.14 KB

Description:

N-channel power mosfet.
STB13N80K5, STF13N80K5, STP13N80K5, STW13N80K5 N-channel 800 V, 0.37 Ω typ., 12 A SuperMESH™ 5 Power MOSFETs in D²PAK, TO-220FP, TO-220 and TO-247 pac.
