STW13NK100Z

N-CHANNEL Power MOSFET

STW13NK100Z Features

* Type STW13NK100Z

* VDSS (@Tjmax) 1000 V RDS(on) ID PW < 0.70 Ω 13 A 350W Extremely high dv/dt capability 100% avalanche tested Gate charge minimized Very low intrinsic capacitances Very good manufacturing repeatibility TO-247 Description The SuperMESH™ series is ob

STW13NK100Z General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements.

STW13NK100Z Datasheet (341.08 KB)

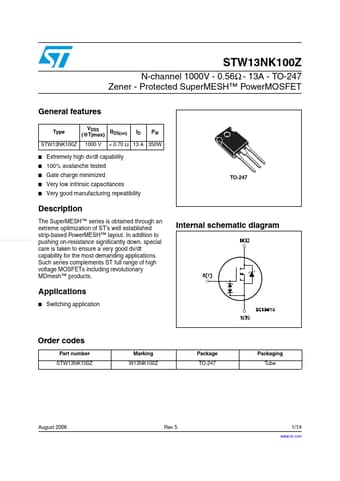

Preview of STW13NK100Z PDF

Datasheet Details

Part number:

STW13NK100Z

Manufacturer:

STMicroelectronics ↗

File Size:

341.08 KB

Description:

N-channel power mosfet.
