STW21N65M5 - N-CHANNEL MOSFET

STMicroelectronics

The STW21N65M5 by STMicroelectronics is a N-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

STW21N65M5 N-CHANNEL MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STW21N65M5** N-CHANNEL MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STW21N65M5
Manufacturer	STMicroelectronics
File Size	865.81 KB
Description	N-CHANNEL MOSFET
Datasheet	STW21N65M5-STMicroelectronics.pdf

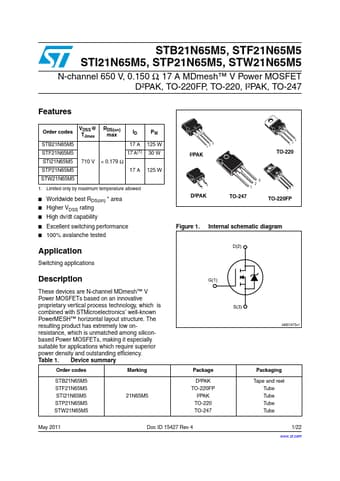

Additional preview pages of the STW21N65M5 datasheet.

STW21N65M5 Product details

Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure.

Features

Order codes VDSS @ TJmax RDS(on) max ID PW STB21N65M5 STF21N65M5 17 A 125 W 17 A(1) 30 W STI21N65M5 710 V < 0.179 Ω STP21N65M5 17 A 125 W STW21N65M5 1. Limited only by maximum temperature allowed.
Worldwide best RDS(on).
area.
Higher VDSS rating.
High dv/dt capability.
Excellent switching performance.
100% avalanche tested.
