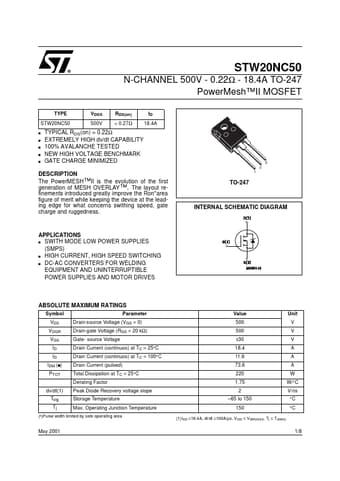

STW20NC50 Datasheet, Mosfet, ST Microelectronics

PDF File Details

Part number:

STW20NC50

Manufacturer:

STMicroelectronics ↗

File Size:

249.47kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™. The layout refinements introduced greatly improve the Ron

STW20NC50 Application

• Applications SWITH MODE LOW POWER SUPPLIES (SMPS) s HIGH CURRENT, HIGH SPEED SWITCHING s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE
