STW20N65M5 Datasheet - STMicroelectronics

N-channel Power MOSFET

STW20N65M5 Features

* Order codes STB20N65M5 STI20N65M5 STP20N65M5 STW20N65M5 VDS @ TJmax RDS(on) max ID 710 V 0.19 Ω 18 A

* Worldwide best RDS(on)

* area

* Higher VDSS rating and high dv/dt capability

* Excellent switching performance

* 100% avalanche tested Applications

* Switching applic

STW20N65M5 General Description

These devices are N-channel MDmesh™ V Power MOSFETs based on an innovative proprietary vertical process technology, which is combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. The resulting product has extremely low onresistance, which is unmatched among siliconbase.

STW20N65M5 Datasheet (786.34 KB)

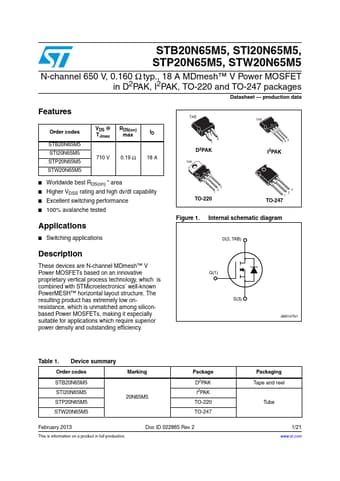

STW20N65M5 Datasheet Preview — Preview of STW20N65M5 PDF

Datasheet Details

Part number:

STW20N65M5

Manufacturer:

STMicroelectronics ↗

File Size:

786.34 KB

Description:

N-channel power mosfet.
STB20N65M5, STI20N65M5, STP20N65M5, STW20N65M5 N-channel 650 V, 0.160 Ω typ., 18 A MDmesh™ V Power MOSFET in D2PAK, I2PAK, TO-220 and TO-247 packages .
