STW20N90K5 Datasheet, Mosfet, STMicroelectronics

STW20N90K5 Features

  • Mosfet Order code VDS STW20N90K5 900 V
  • Industry’s lowest RDS(on) x area
  • Industry’s best FoM (figure of merit)
  • Ultra-low gate charge
  • 100% avalanche

PDF File Details

Part number:

STW20N90K5

Manufacturer:

STMicroelectronics ↗

File Size:

272.07kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This very high voltage N-channel Power MOSFET is designed using MDmesh™ K5 S(3) AM01475V1 technology based on an innovative proprieta

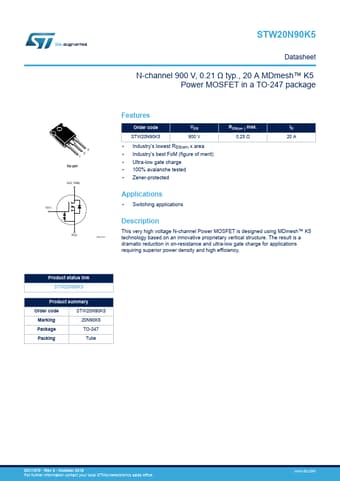

Datasheet Preview: STW20N90K5 📥 Download PDF (272.07kb)
Page 2 of STW20N90K5 Page 3 of STW20N90K5

STW20N90K5 Application

  • Applications
  • Switching applications RDS(on ) max. 0.25 Ω ID 20 A Description This very high voltage N-channel Power MOSFET is designed
