STW20NM60 Datasheet, Mosfet, ST Microelectronics

STW20NM60 Features

  • Mosfet Type STP20NM60 STP20NM60FP STB20NM60 STB20NM60-1 STW20NM60 VDSS 600V 600V 600V 600V 600V RDS(on) < 0.29Ω < 0.29Ω < 0.29Ω < 0.29Ω < 0.29Ω ID 20A 20A 20A 20A 20A
  • High dv/dt

PDF File Details

Part number:

STW20NM60

Manufacturer:

STMicroelectronics ↗

File Size:

418.08kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the company’s PowerMESH™ h

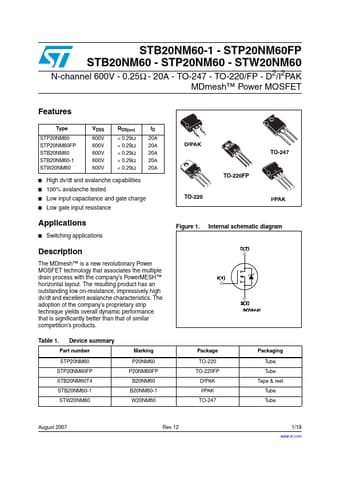

Datasheet Preview: STW20NM60 📥 Download PDF (418.08kb)
Page 2 of STW20NM60 Page 3 of STW20NM60

STW20NM60 Application

  • Applications
  • Switching applications Description The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple d
