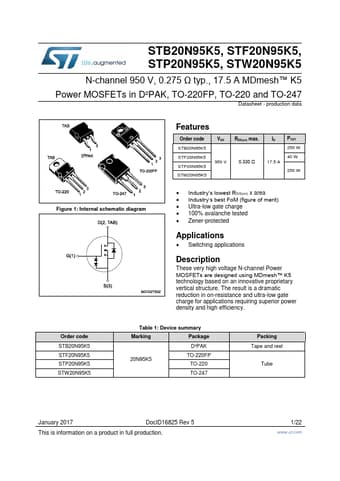

STW20N95K5 Datasheet - STMicroelectronics

STW20N95K5 - N-channel Power MOSFET

These very high voltage N-channel Power MOSFETs are designed using MDmesh™ K5 technology based on an innovative proprietary vertical structure. The result is a dramatic reduction in on-resistance and ultra-low gate charge for applications requiring superior power density and high efficiency. Order .

STW20N95K5 Features

* Order code STB20N95K5 STF20N95K5 STP20N95K5 STW20N95K5 VDS 950 V RDS(on) max. 0.330 Ω ID 17.5 A PTOT 250 W 40 W 250 W

* Industry’s lowest RDS(on) x area

* Industry’s best FoM (figure of merit)

* Ultra-low gate charge

* 100% avalanche tested

* Zener-protected Applications

STW20N95K5-STMicroelectronics.pdf
