STW20NM60FD Datasheet, Mosfet, INCHANGE

STW20NM60FD Features

  • Mosfet
  • Low input capacitance and gate charge
  • Low gate input resistance
  • 100% avalanche tested
  • Tight process control and high manufacturing yields
  • Mi

PDF File Details

Part number:

STW20NM60FD

Manufacturer:

INCHANGE

File Size:

208.28kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

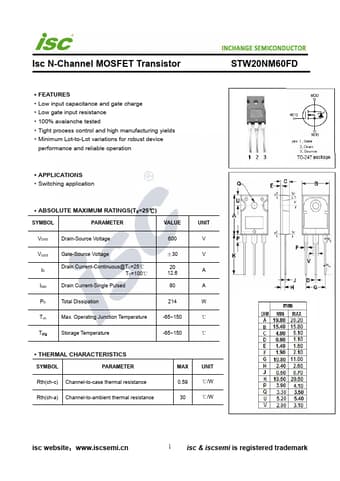

Datasheet Preview: STW20NM60FD 📥 Download PDF (208.28kb)
Page 2 of STW20NM60FD

STW20NM60FD Application

  • Applications
  • Switching application
  • ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 V
