STW21NM50N N-CHANNEL MOSFET

STW21NM50N Description

STP21NM50N-STF21NM50N-STW21NM50N STB21NM50N - STB21NM50N-1 N-CHANNEL 500V - 0.15Ω - 18A TO-220/FP/D2/I2PAK/TO-247 SECOND GENERATION MDmesh™ MOSFET Tab.
The STx21NM50N is realized with the second generation of MDmesh Technology.

STW21NM50N Features

* TYPE STB21NM50N STB21NM50N-1 STF21NM50N STP21NM50N STW21NM50N
* Figure 1: Package RDS(on) < < < < < 0.19 0.19 0.19 0.19 0.19 Ω Ω Ω Ω Ω ID 18 A 18 A 18 A (
* ) 18 A 18 A VDSS (@Tjmax) 550 550 550 550 550 V V V V V 3 1 3 1 2 3 1 2 D2PAK TO-220 TO-220FP
* 100% AVALANCHE TESTED

STW21NM50N Applications

* The MDmesh™ II family is very suitable for increasing power density of high voltage converters allowing system miniaturization and higher efficiencies. Table 2: Order Codes SALES TYPE STB21NM50N STB21NM50N-1 STF21NM50N STP21NM50N STW21NM50N MARKING B21NM50N B21NM50N F21NM50N P21NM50N W21NM50N PACKA

📥 Download Datasheet

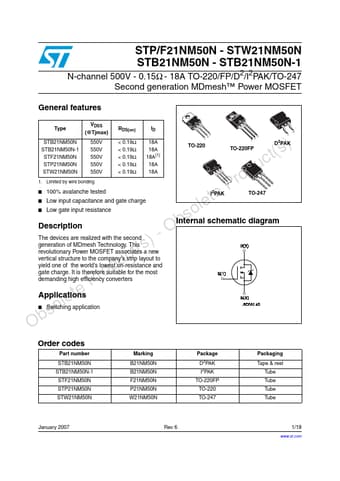

Preview of STW21NM50N PDF
datasheet Preview Page 2 datasheet Preview Page 3
