STW24N60DM2 - N-CHANNEL POWER MOSFET

STMicroelectronics

The STW24N60DM2 by STMicroelectronics is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

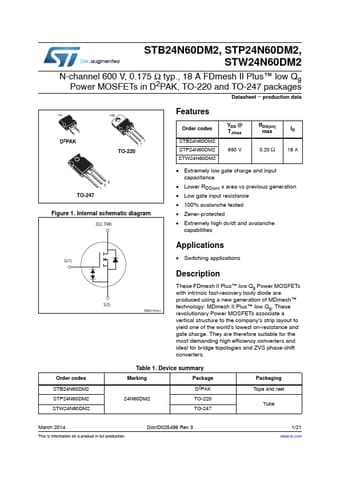

STW24N60DM2 N-CHANNEL POWER MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **STW24N60DM2** N-CHANNEL POWER MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	STW24N60DM2
Manufacturer	STMicroelectronics
File Size	668.20 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STW24N60DM2-STMicroelectronics.pdf
Additional preview pages of the STW24N60DM2 datasheet.

STW24N60DM2 Product details

Description

These FDmesh II Plus™ low Qg Power MOSFETs with intrinsic fast-recovery body diode are produced using a new generation of MDmesh™ S(3) AM01476v1 technology: MDmesh II Plus™ low Qg.These revolutionary Power MOSFETs associate a vertical structure to the company's strip layout to yield one of the world's lowest

Features

Order codes STB24N60DM2 STP24N60DM2 STW24N60DM2 VDS @ TJmax 650 V RDS(on) max ID 0.20 Ω 18 A.
Extremely low gate charge and input capacitance.
Lower RDS(on) x area vs previous generation.
Low gate input resistance.
100% avalanche tested.
Zener-protected.
Extremely high dv/dt and avalanche capabilities.
